Note: BENCHLAB2 is currently on pre-order and expected to ship 2026-10-23.

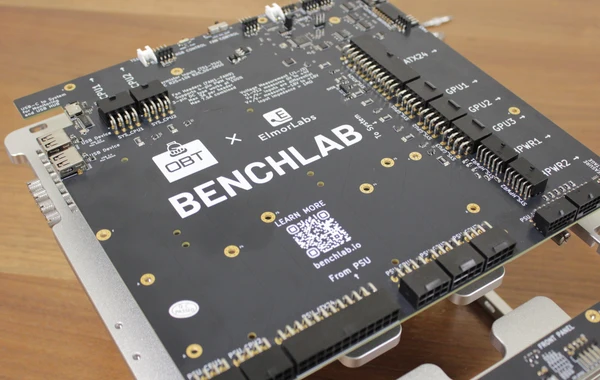

BENCHLAB is a cutting-edge, compact real-time system telemetry solution engineered for PC DIY enthusiasts. It allows you to effortlessly monitor critical system metrics, including temperature, power usage, and voltage levels, as well as conveniently manage system fan speeds. The telemetry data is displayed in the BENCHLAB software which also allows you to log the data to a file or export directly to HWiNFO.

BENCHLAB empowers you to make informed decisions when fine-tuning your system’s performance. It helps identify potential hardware issues before they escalate, and optimise your hardware configurations seamlessly. Its intuitive design makes it an indispensable tool for both seasoned overclockers or PC DIY enthusiasts, simplifying the complexities of PC DIY system monitoring.

Improvements in BENCHLAB 2

• Improved noise and voltage drop across all rails thanks to 6-layer PCB design
• Per-pin 12VHPWR/12V-2×6 monitoring for both connectors
• 12VHPWR/12V-2×6 in/out temperature monitoring
• Additional mounting holes for Corsair Frame 4000D/5000D chassis.
• Support for mounting up to 2 SSDs
• 5VSB switch function
• Physical power on and reset buttons
• Buzzer for audible warning
• Integrated fault detection and alarm system for device protection

Package Content

• 1x BENCHLAB2 PCB
• Power Measurement

  • 1x 24-pin ATX plug to 24-pin ATX plug, 20cm (black)

  • 2x 4+4-pin EPS plug to 8-pin EPS plug, 20cm (black)

  • 3x 6+2-pin PCIE plug to 8-pin PCIE plug, 40cm (black)

  • 2x 12+4-pin 12VHPWR plug to 12+4-pin 12VHPWR plug, 40cm (black)

• Voltage Input
  • 4x 1-pin dupont male with test hook, 30cm (red, green, yellow, blue)

• Fan Ext
  • 1x 4-pin to 4-pin fan header receptacle, 30cm (black)

• Thermistor
  • 2x thin film tip B=3950 to 2-pin JST XH 100cm (black)
  • 2x waterproof tip B=3950 to 2-pin JST XH 100cm (black)
• RGB
  • 1x 3-pin to 3-pin, 30cm (black)
• I/O Connector
  • 3x 2-pin dupont female to female 20cm (black)

  • 1x USB Type-A to Type-C, 100cm (black)
• Standoffs
  • 10x 25+6mm M3 nickel-plated copper

BENCHLAB Features

Power Measurement

• 1x 24-pin ATX (12V, 5V, 3.3V, 5VSB)
• 2x 8-pin EPS (12V)
• 3x 6+2-pin PCIE (12V)
• 2x 12+4-pin 12VHPWR (6x 12V pins each measurable)

Voltage Measurement

• 1x ±18V differential
• 8x 0-4V single ended (MB)
• 4x 0-4V single ended (VGA)

Temperature Measurement

• Ambient temperature
• Ambient humidity
• 4x thermistor

Fan Control

• 9x 4-pin (PWM)
• 1x Fan control switch: 3 modes (full-speed, temp control, ext. control/half-speed)

On-board RGB

• 30x ARGB gen1
• RGB control switch: on/off

I/O Devices

• 1x CTRL1 connector
• 2x 9-pin F_PANEL header (in/out)
• 1x USB Type-C for hub & MCU connection
• 3x USB Type-A 2.0 (hub through USB Type-C connection)
