MP2888B EVC2S
Quote from zeddivile on 2020-10-21, 11:09Hi I am a not funny new evc2s purchaser with a few questions about it and the MP2888.
1. looking for any info on breakout for SCL/SDA on the PG133 Board (debug or something?) or suggestions on expectations?

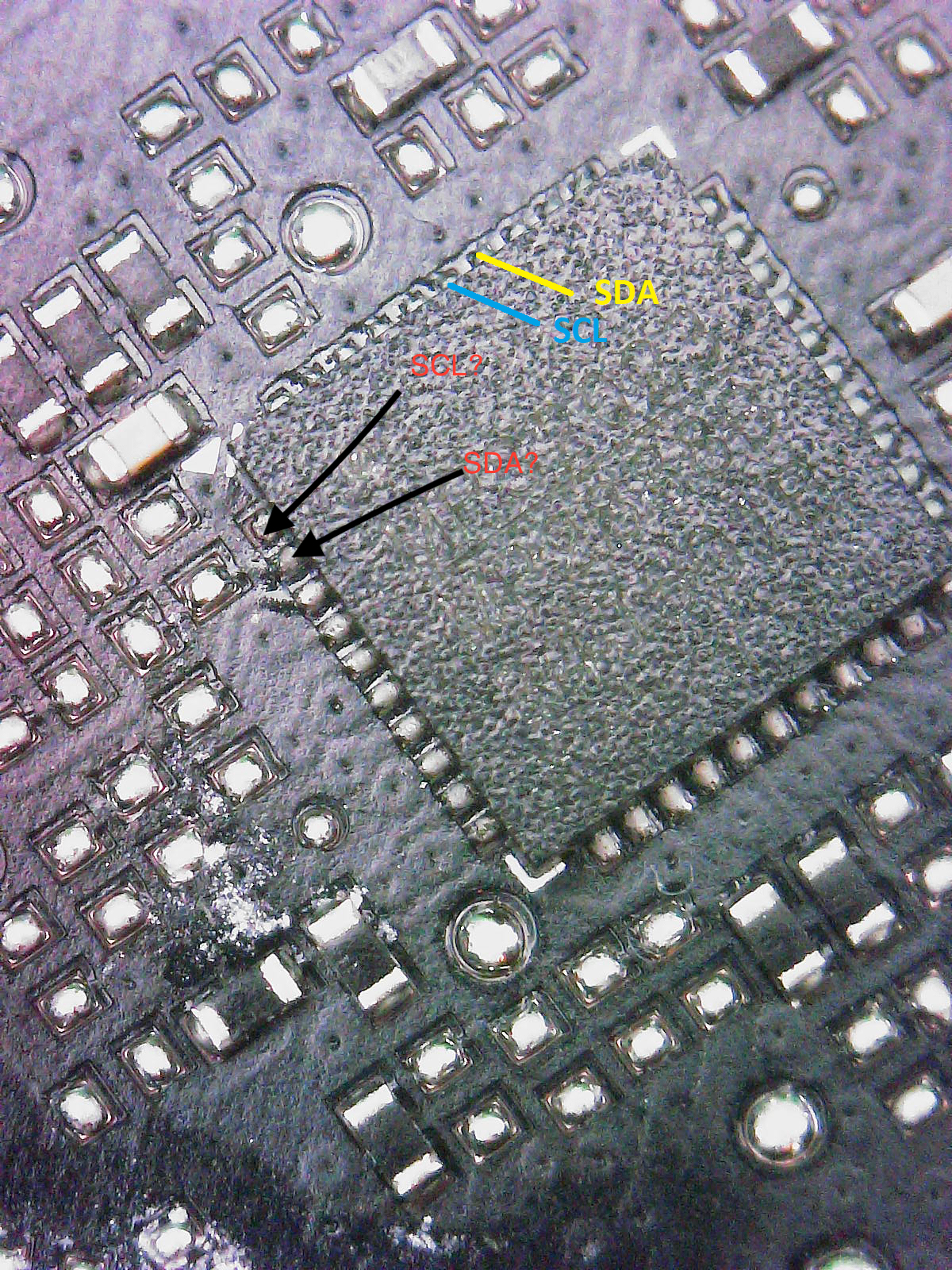

2. Would the pin identification in the attached image be correct?
Hi I am a not funny new evc2s purchaser with a few questions about it and the MP2888.
1. looking for any info on breakout for SCL/SDA on the PG133 Board (debug or something?) or suggestions on expectations?
2. Would the pin identification in the attached image be correct?
Uploaded files:
Quote from elmor on 2020-10-27, 00:31Hello, really sorry about the delayed response.

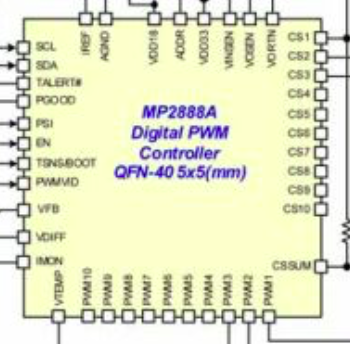

You mean for MP2888A right? Which card is PG133, Founder's Edition RTX3080/3090? For MP2888A, those pins in the graphic you showed are not in numerical order. SDA = pin #34, SCL = pin #35.
Hello, really sorry about the delayed response.
You mean for MP2888A right? Which card is PG133, Founder's Edition RTX3080/3090? For MP2888A, those pins in the graphic you showed are not in numerical order. SDA = pin #34, SCL = pin #35.
Uploaded files:
