EVC2 Beta Firmware

PreviousPage 3 of 3
Quote from Jonathan Kurz on 2023-10-29, 00:06

So Im having the same issue as the guy above. When I point the STM32 bootloader into the driver folder, it says correct driver installed.



When I unplug move the jumper the EVC show as a microelectronics device.

Any suggestion? Im just lost!



Hello, are you able to use the driver included in STM32CubeProgrammer? If you select Update driver -> Select manually and go to path "C:\Program Files\STMicroelectronics\STM32Cube\STM32CubeProgrammer\Drivers\DFU_Driver\Driver"?

Hey, hope you are going well. I have a EVC2SX-03 STM32F072C, was trying to update the firmware on it.

I can't seem to get STM32CubeProgrammer to work with the correct driver installed, latest version 2.15, it will not connect, I get the error message "device is under read out protection", checking "Read Unprotect" does not help.
Tried a Win10 PC as well as my Win11 laptop and i get the same error on both.

DfuSe works fine, was able to flash 0009d (F0) dfu, detects and works in the EVC software.

Am I doing something wrong?

Uploaded files:

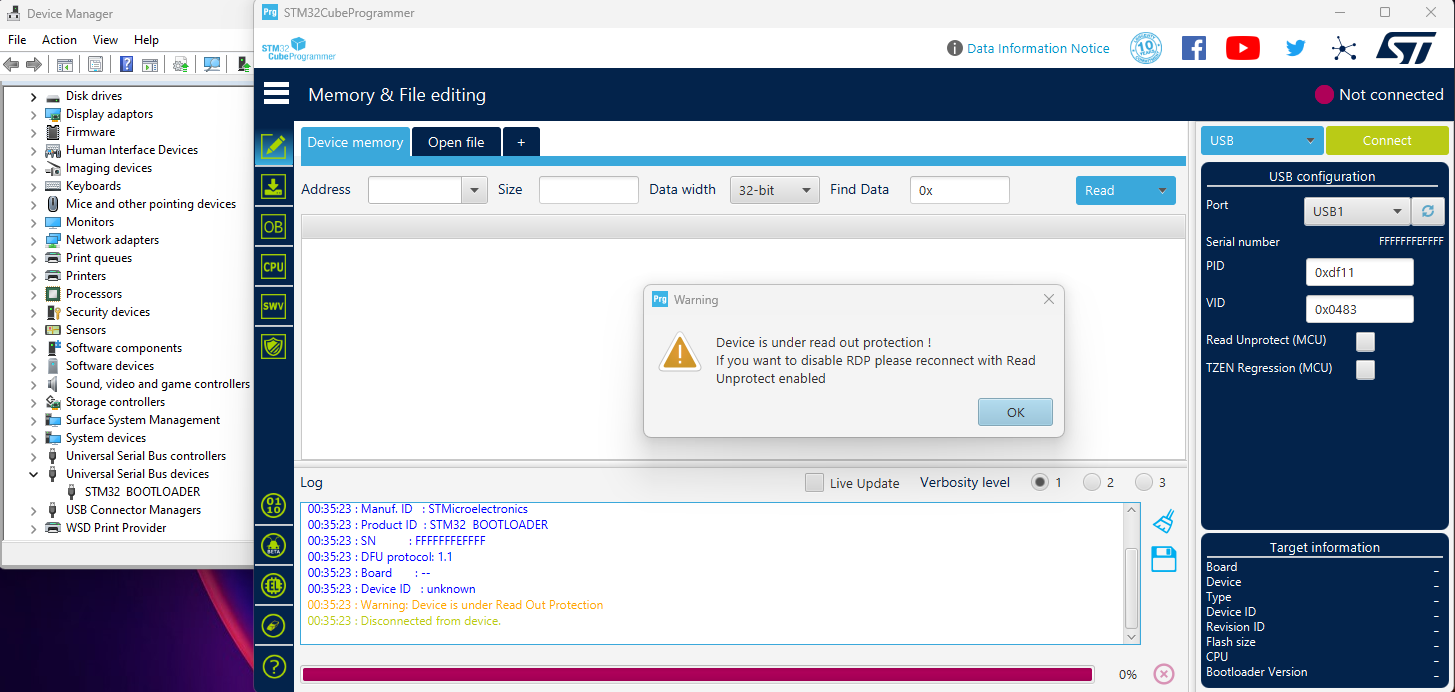

  • STM32CubeProgrammer.png

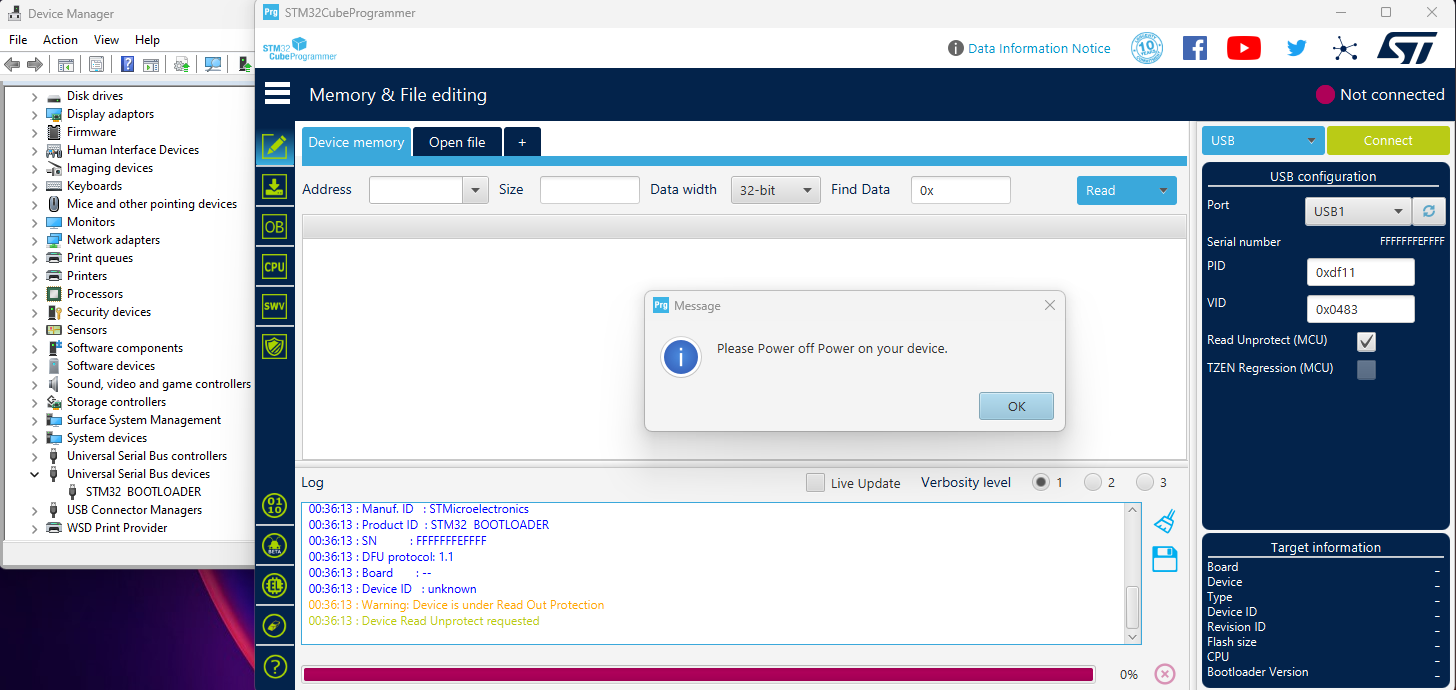

  • STM32CubeProgrammer-Read-Unprotect-check.png

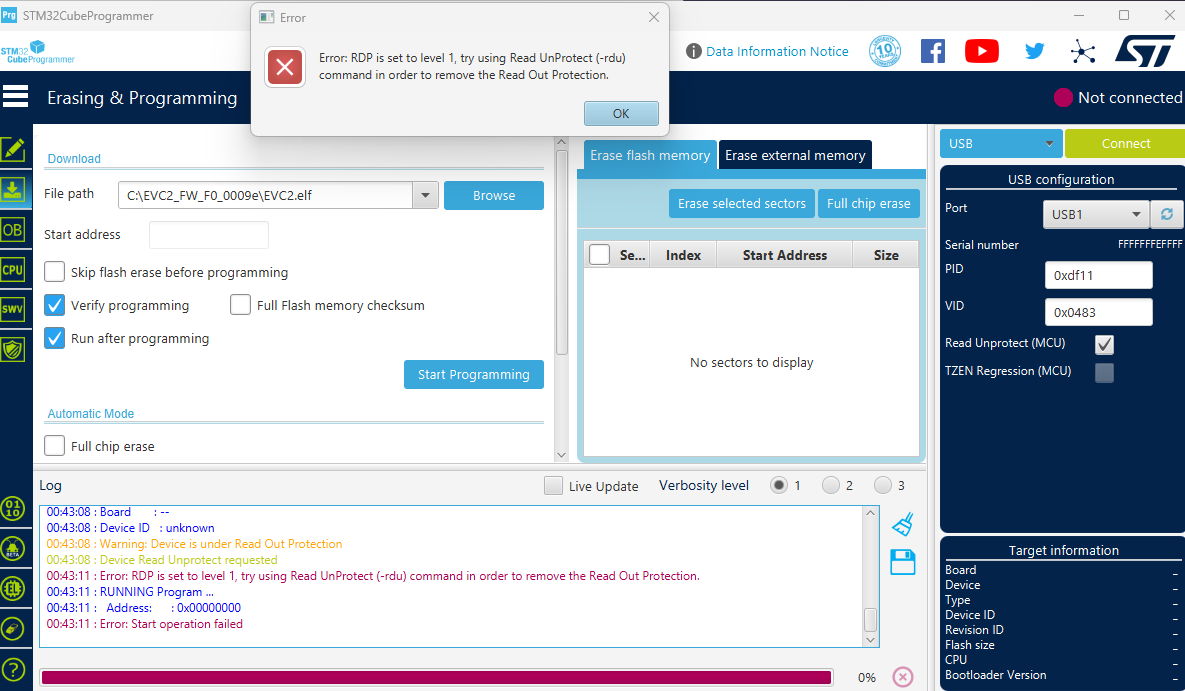

  • STM32CubeProgrammer-Read-Unprotect-check-1.png

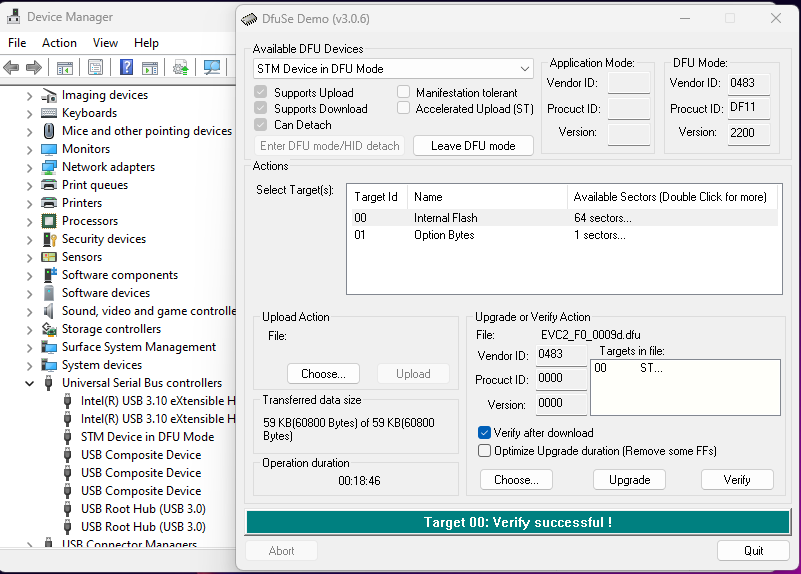

  • DfuSe.png
